Understanding PWM and Signal Characterization

PWM and Signal Analysis Lab

Objective

• Understand how Pulse Width Modulation (PWM) controls LED brightness.

• Learn how varying duty cycle and effective frequency affect the output signal.

• Use the Red Pitaya oscilloscope to visualize the PWM signals.

• Measure the period and calculate the duty cycle of the signal using cursors on the oscilloscope.

Theory

What is PWM?

• Duty Cycle:
If the duty cycle is 50%, the signal is HIGH for half the period and LOW for the other half. For example, at a 10 Hz frequency (period = 100 ms), a 50% duty cycle means the signal is HIGH for 50 ms and LOW for 50 ms.

• Frequency:
Frequency is the number of PWM cycles per second (Hz). Higher frequencies mean that the LED is switched on and off faster than the human eye can detect, resulting in smooth brightness transitions. Lower frequencies might lead to visible flicker.

PWM in LED Dimming

• Digital On/Off: A simple 50/50 square wave results in full brightness when ON and complete darkness when OFF.

• Variable Duty Cycle: Changing the duty cycle changes the average power delivered to the LED. A higher duty cycle means the LED is ON longer per cycle, increasing brightness. Conversely, a lower duty cycle reduces brightness.

• Effective Frequency: Even if the hardware PWM frequency is fixed, modifying the rate at which PWM values are updated (the effective frequency) can change how smooth or flickery the LED appears.

Materials Required

• Arduino Uno or Arduino Uno R4 board

• LED

• Current-limiting resistor (1 kΩ recommended)

• Breadboard and jumper wires

• Red Pitaya STEMlab 125-14 (or another oscilloscope) for signal visualization

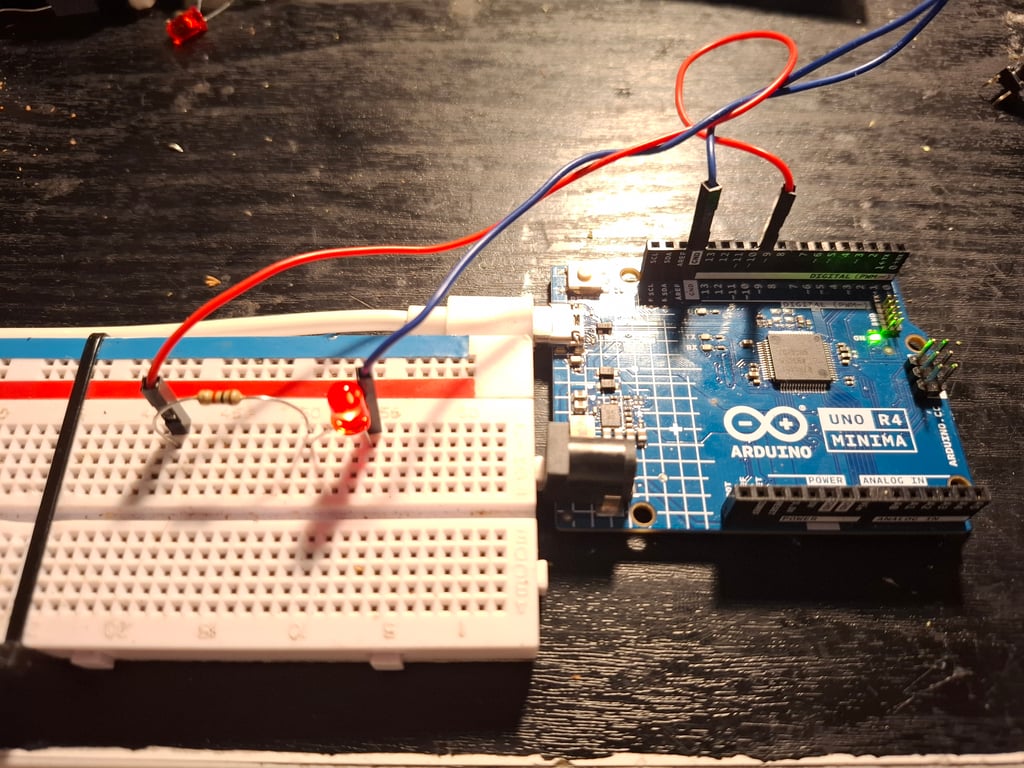

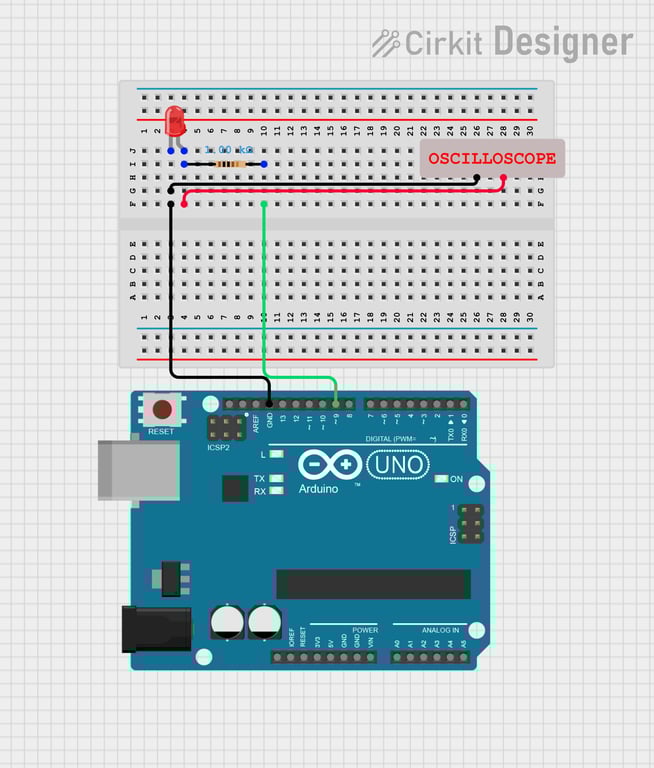

Circuit Wiring Instructions

1. LED Connection:
• Connect Arduino digital pin 9 (PWM-capable) to one end of a 1 kΩ resistor.
• Connect the other end of the resistor to the LED’s anode (long lead).
• Connect the LED’s cathode (short lead) to Arduino GND.

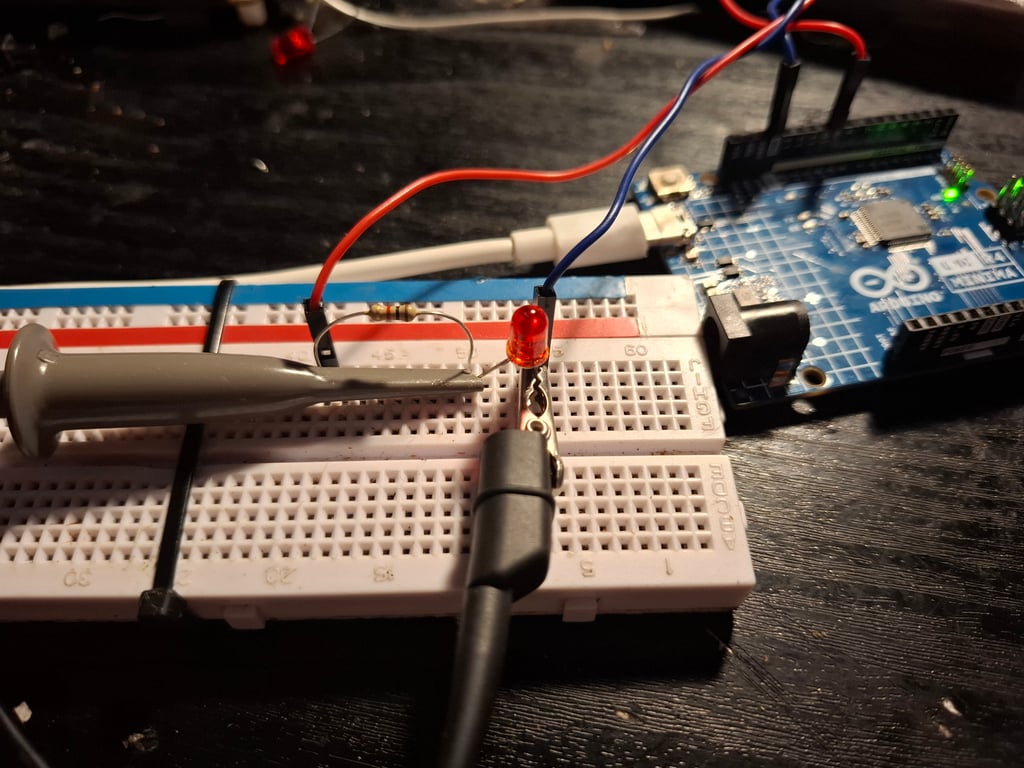

2. Oscilloscope Connection (Optional):
• Attach the probe tip of the Red Pitaya (or another oscilloscope) to pin 9 (or to the junction between the resistor and LED).

• Connect the oscilloscope ground clip to Arduino GND.

Segment Instructions and Code for Each PWM State

State 0: 10 Hz Digital On/Off Toggling (50/50 Duty Cycle)

// State 0: 10Hz Digital On/Off (50/50 Duty Cycle)
void state0() {
  digitalWrite(9, HIGH);
  delay(50);  // LED ON for 50ms
  digitalWrite(9, LOW);
  delay(50);  // LED OFF for 50ms
}

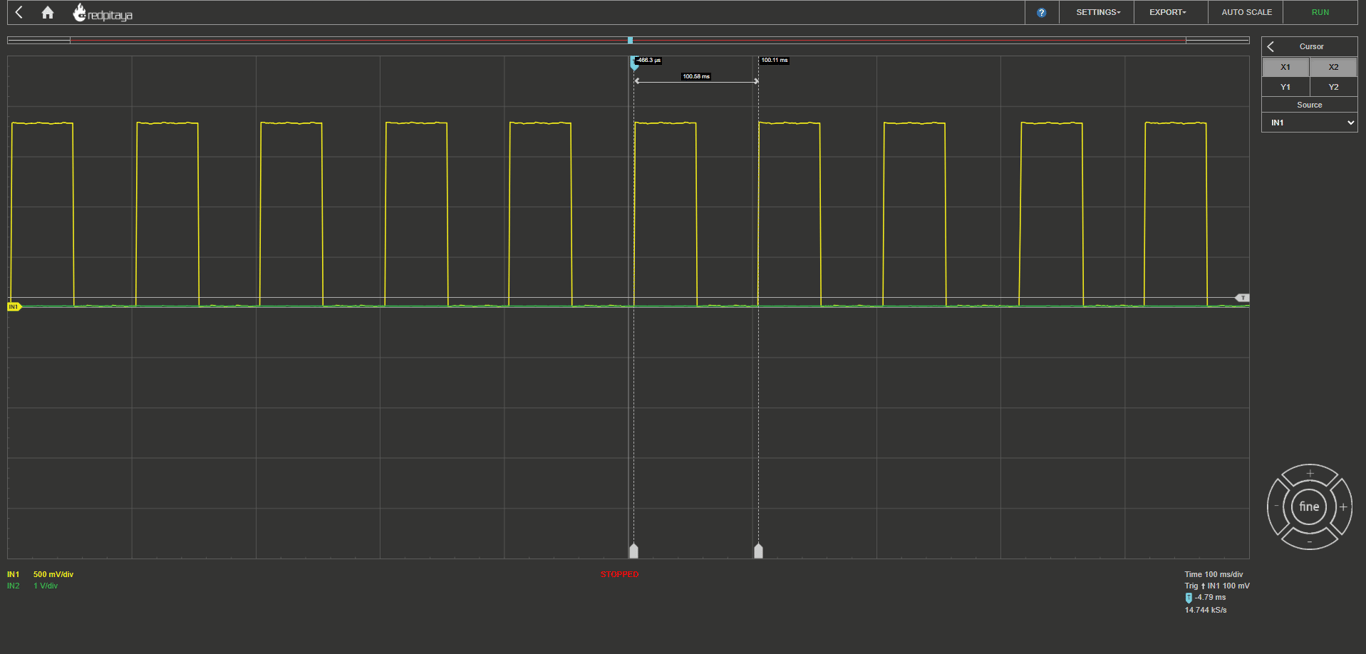

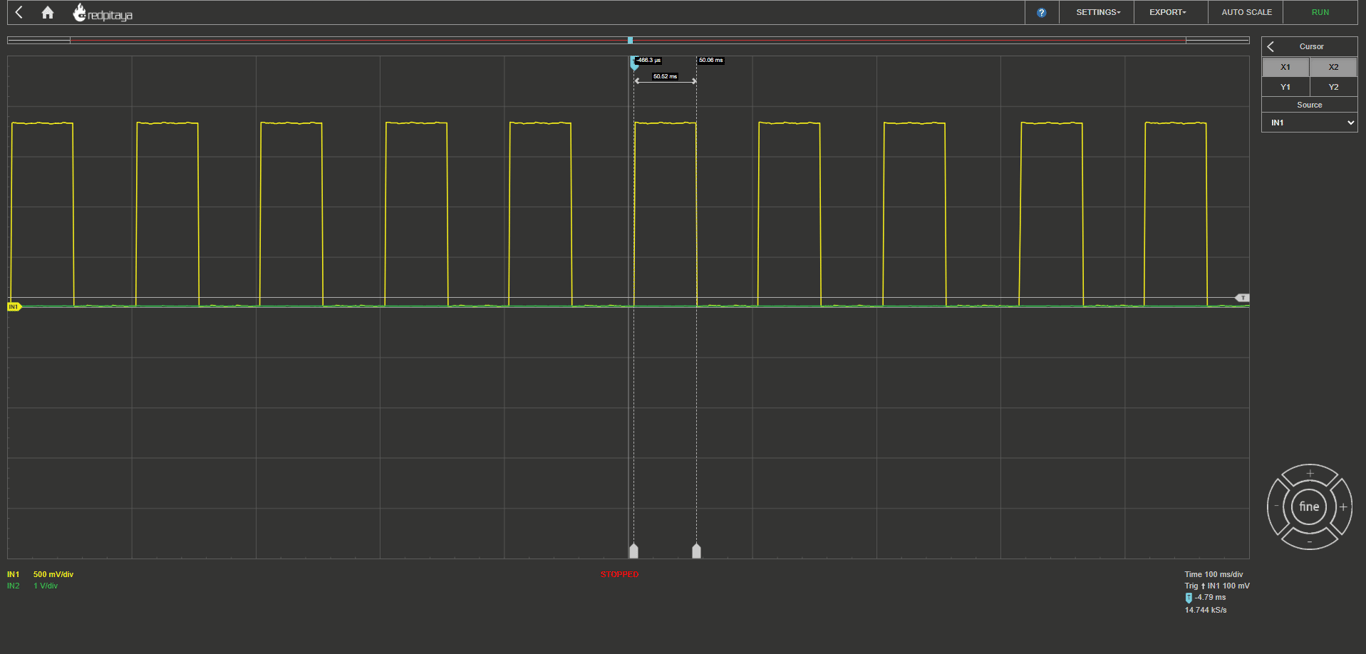

• Set the oscilloscope time base to show a 100 ms period.

• Use cursors to mark the start and end of a cycle.

• Calculate the period (should be ~100 ms) and note that the duty cycle is 50% (50 ms HIGH / 100 ms total).

State 1: 10 Hz PWM with a 10/90 Duty Cycle

cpp
Copy
// State 1: 10Hz PWM with 10/90 Duty Cycle
void state1() {
  static bool toggle = false;
  if (toggle)
    analogWrite(9, 26);   // Dim: 10% brightness
  else
    analogWrite(9, 230);  // Bright: 90% brightness
  toggle = !toggle;
  delay(50); // 50ms per state (10Hz cycle)
}

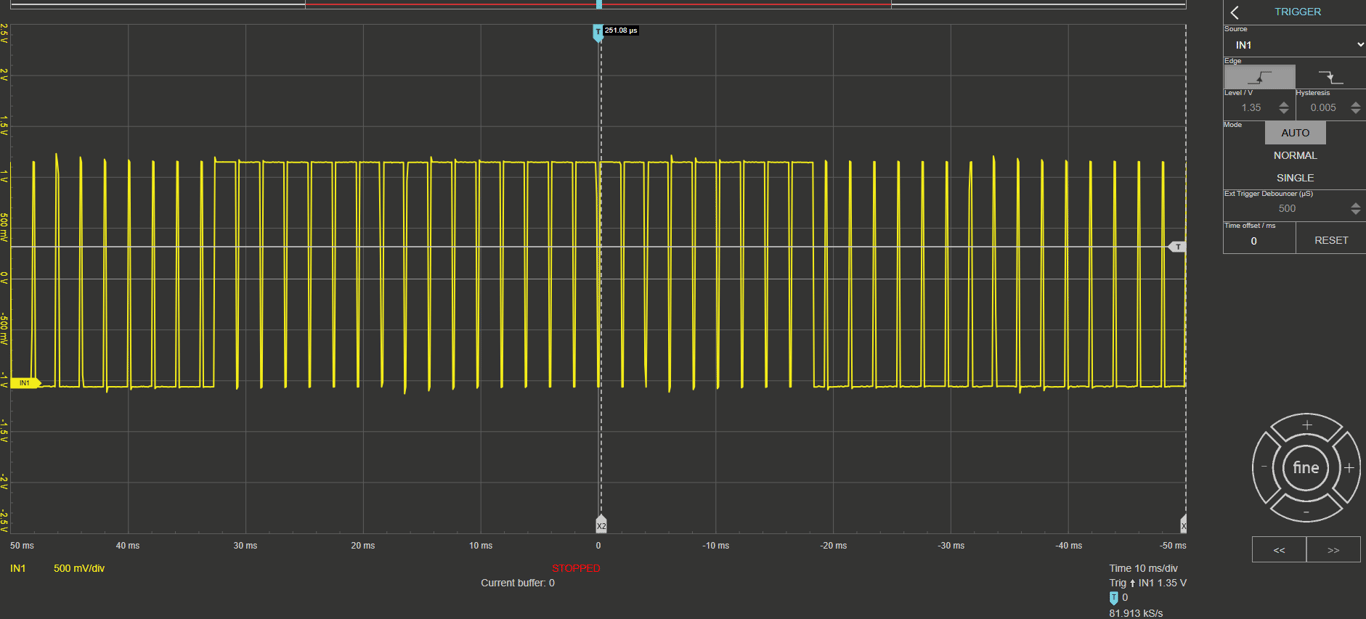

• Observe the PWM waveform on the oscilloscope.

• Use cursors to measure the high and low intervals within one cycle:
• High interval should be ~10 ms (10% of 100 ms).
• Low interval should be ~90 ms.

• Calculate the duty cycle: (High Time / Total Period) * 100 ≈ 10% when dim and 90% when bright.

State 2: 10 Hz PWM with a 90/10 Duty Cycle

cpp
Copy
// State 2: 10Hz PWM with 90/10 Duty Cycle
void state2() {
  static bool toggle = false;
  if (toggle)
    analogWrite(9, 230);  // Bright: 90% brightness
  else
    analogWrite(9, 26);   // Dim: 10% brightness
  toggle = !toggle;
  delay(50); // 10Hz cycle (100 ms period)
}

• Similar to State 1, use the oscilloscope to measure the intervals.

• Confirm that the only difference is the order of brightness levels compared to State 1.

State 3: PWM with Fixed 70/30 Duty Cycle & Varying Frequency

• First 3.33 sec: 20 Hz (Period = 50 ms, ON ~35 ms)

• Next 3.33 sec: ~30 Hz (Period ≈ 33 ms, ON ~23 ms)

• Last 3.33 sec: 40 Hz (Period = 25 ms, ON ~18 ms)

// State 3: PWM with Fixed 70/30 Duty Cycle and Varying Frequency
void state3() {
  unsigned long now = millis();
  unsigned long stateElapsed = now - stateStartTime; // stateStartTime is global
  unsigned long period, onTime;

  if (stateElapsed < stateDuration / 3) {
    period = 50;  // 20Hz: period = 50ms
    onTime = 35;  // 70% of 50ms ≈ 35ms
  } else if (stateElapsed < 2 * stateDuration / 3) {
    period = 33;  // ~30Hz: period ≈ 33ms
    onTime = 23;  // 70% of 33ms ≈ 23ms
  } else {
    period = 25;  // 40Hz: period = 25ms
    onTime = 18;  // 70% of 25ms ≈ 18ms
  }

  // Calculate current phase within the PWM cycle
  unsigned long phase = (now - stateStartTime) % period;
  if (phase < onTime)
    digitalWrite(9, HIGH);
  else
    digitalWrite(9, LOW);
  delay(1); // Short delay for processing
}

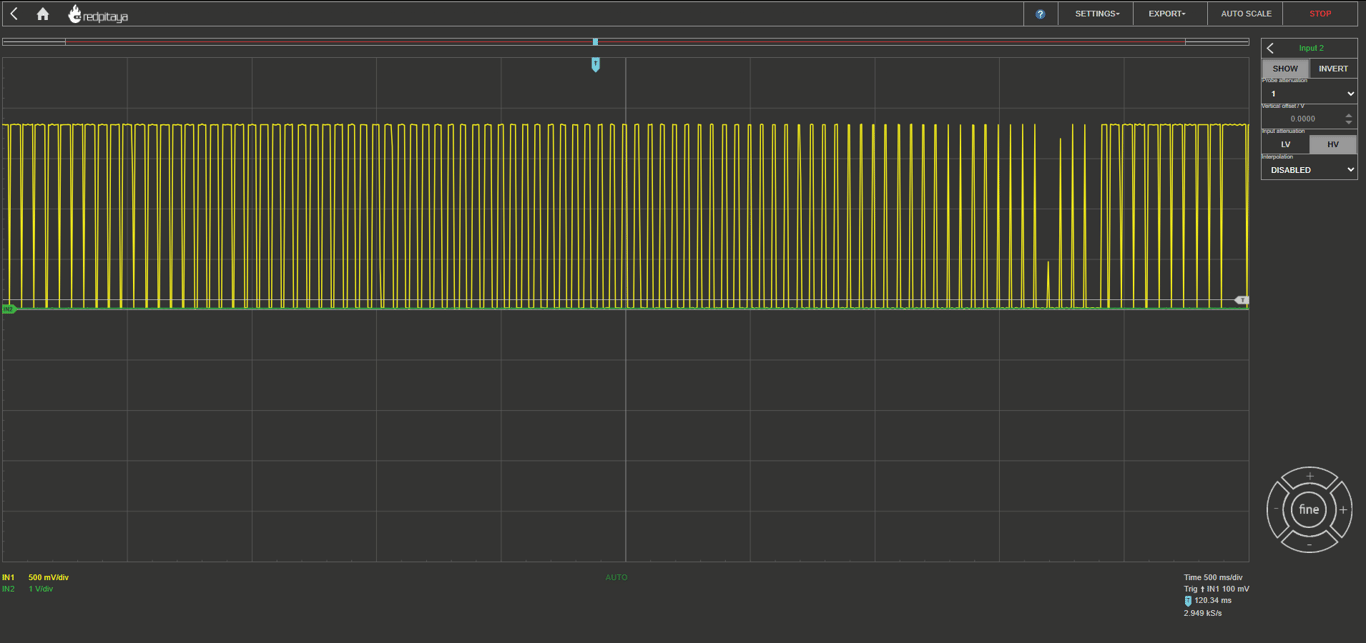

• Observe the waveform’s period decrease over the 10-second period.

• Use cursors to measure the period and on-time in each sub-interval:
• First interval: period ~50 ms, on-time ~35 ms.
• Second interval: period ~33 ms, on-time ~23 ms.
• Third interval: period ~25 ms, on-time ~18 ms.

• Discuss how increasing frequency reduces visible flicker.

State 4: 20 Hz PWM with Sweeping (Triangular) Duty Cycle

// State 4: 20Hz PWM with a Sweeping (Triangular) Duty Cycle
void state4() {
  const unsigned long period = 50; // 20Hz period = 50ms
  float frac = (float)(millis() - stateStartTime) / (float)stateDuration;
  unsigned long onTime;
  if (frac <= 0.5) {
    onTime = (unsigned long)(frac * 2.0 * period); // Ramp up from 0 to 50ms
  } else {
    onTime = (unsigned long)((1.0 - (frac - 0.5) * 2.0) * period); // Ramp down from 50ms to 0
  }
  unsigned long phase = (millis() - stateStartTime) % period;
  if (phase < onTime)
    digitalWrite(9, HIGH);
  else
    digitalWrite(9, LOW);
  delay(1);
}

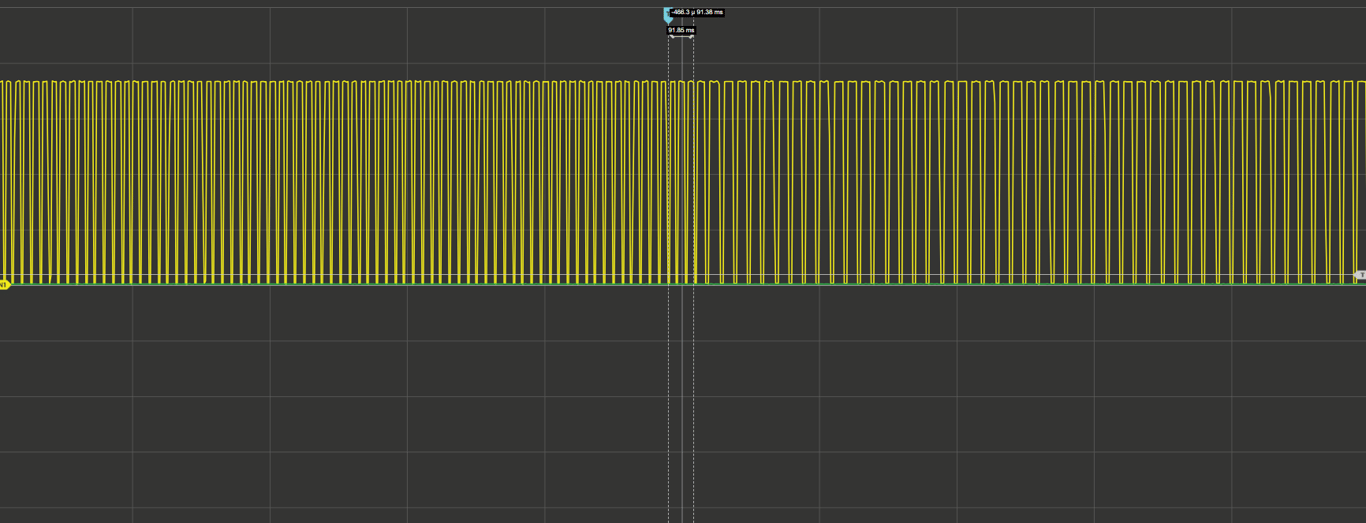

• Use the oscilloscope to visualize the smooth triangular modulation of the PWM duty cycle.

• Use cursors to measure the rising and falling portions of the cycle.

• Notice how the LED brightness gradually increases and decreases.

Discussion Questions & Answers

1. How does changing the duty cycle affect the average brightness of the LED?
Answer: Increasing the duty cycle increases the proportion of time the LED is ON, resulting in a higher average voltage and greater brightness. A lower duty cycle reduces the average power, making the LED dimmer.

2. What is the difference between a digital on/off signal and a PWM signal?
Answer: A digital on/off signal (as in State 0) is a fixed square wave with a 50/50 duty cycle, meaning the LED is fully ON or OFF. A PWM signal varies the duty cycle, effectively controlling the average voltage and brightness of the LED. PWM can simulate varying brightness levels even though the output is still a rapidly switching digital signal.

3. How does varying the effective PWM frequency (as in State 3) impact the perceived flicker of the LED?
Answer: At lower effective frequencies, the on/off transitions are slower and may be visibly noticeable as flicker. As the effective frequency increases, the transitions occur faster than the human eye can resolve, resulting in smoother brightness without noticeable flicker.

4. Which state produced the smoothest dimming effect, and why?
Answer: State 4, with the continuous triangular sweep at a fixed 20 Hz rate, produces the smoothest dimming effect. This is because the duty cycle changes gradually over the PWM period, providing a continuous transition in brightness without abrupt jumps.

5. How might PWM principles be applied to other systems such as motor control or audio signal generation?
Answer: In motor control, PWM adjusts the motor speed by varying the average voltage delivered, ensuring efficient and precise control. In audio signal generation, PWM can be filtered to create analog-like waveforms for sound output. These principles allow for energy-efficient, precise control in a wide range of applications.
