## Objective

In this section, we will discuss the measurement of capacitance, which is a fundamental property of electrical circuits. Capacitance is a measure of an object’s ability to store electrical energy in an electric field, and it is expressed in farads (F). Capacitance measurement is essential in many areas of electrical engineering, including power transmission, signal processing, and electronic circuit design. Capacitance measurement can be challenging due to various factors, including stray capacitance, parasitic capacitance, and measurement instrument limitations.

**Capacitors**

Capacitors are essential passive electronic components used in a variety of applications, such as power supplies, filters, and oscillators. They store energy in the form of an electric field when a voltage is applied across them and release that energy when the voltage changes. In this introduction to capacitors, we will explore the basic principles, types, and applications of capacitors in electronic circuits.

**Basic Principles of Capacitors**

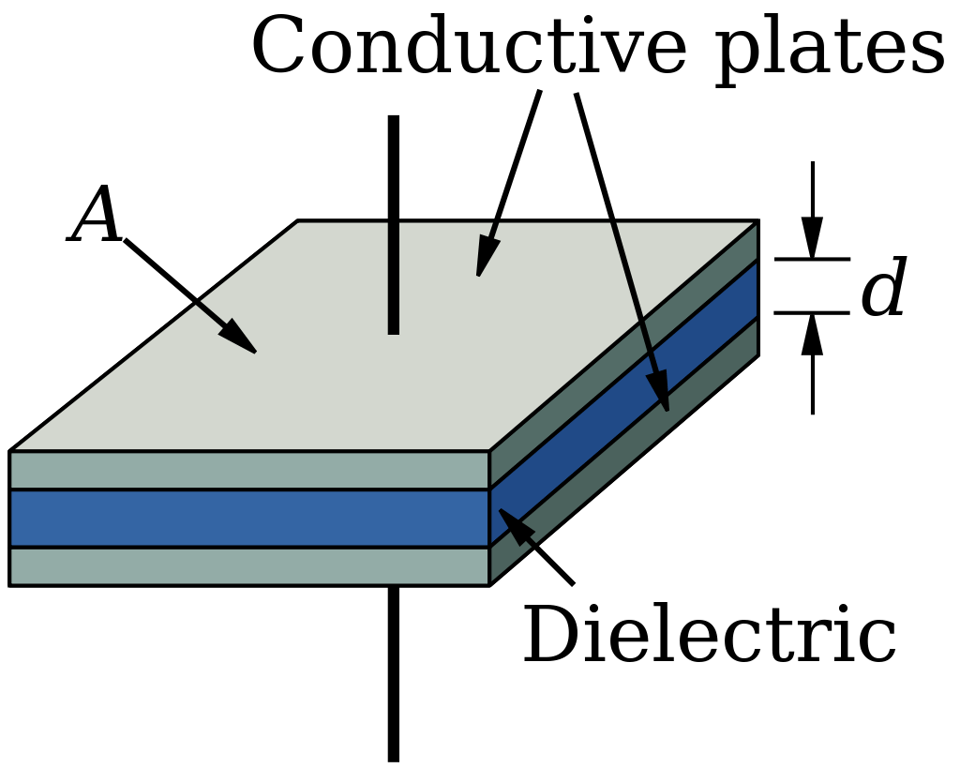

A capacitor consists of two conductive plates separated by an insulating material called a dielectric. When a voltage is applied across the plates, it creates an electric field between them. This electric field stores energy, and when the voltage changes, the energy is released back into the circuit. The capacitor’s ability to store and release energy is determined by its capacitance, which is measured in farads (F). The capacitance value depends on factors such as the area of the plates, the distance between them, and the type of dielectric material.

The capacitance is given by equation:

$C = \frac{\varepsilon_0 \cdot A}{d}$And the capacitors reactance is calculated as:

$X_C = \frac{1}{2 \pi f C}$There are several types of capacitors:

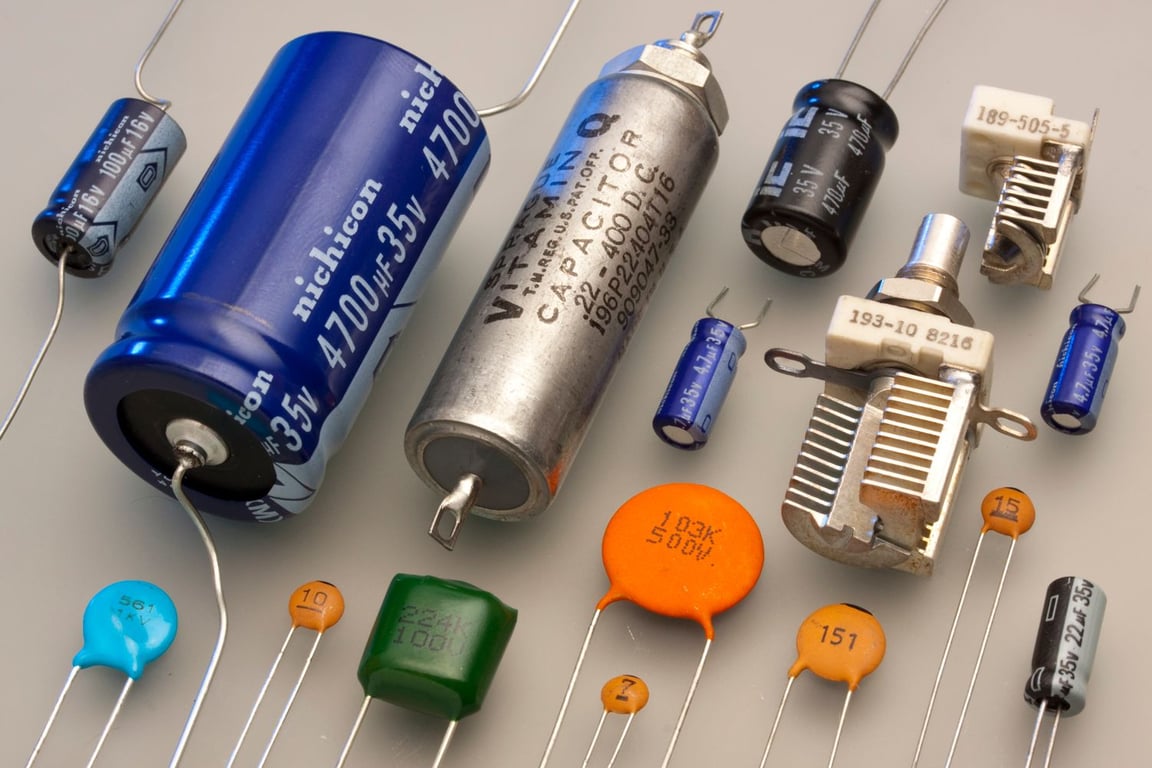

**Ceramic Capacitors**

Ceramic capacitors use a ceramic material as the dielectric and are commonly used in high-frequency applications due to their low parasitic inductance and low loss.

**Electrolytic Capacitors**

These capacitors have a dielectric made of an electrolyte-soaked paper or a tantalum oxide layer on the surface of the anode. They are commonly used in power supplies and other low-frequency applications due to their high capacitance values.

**Film Capacitors**

Film capacitors use a thin film of metal as the plates and a plastic film as the dielectric. They are suitable for a wide range of applications, including filters, resonant circuits, and decoupling.

**Aluminum Capacitors**

Aluminum capacitors use aluminum foils as the plates and a layer of aluminum oxide as the dielectric. They are commonly used in power supply applications due to their high capacitance values and ability to withstand high voltages.

**Applications of Capacitors**

Capacitors play a crucial role in various electronic circuits and systems:

**Filters**

Capacitors can be used in combination with inductors to create low-pass, high-pass, and band-pass filters to control the flow of signals with specific frequencies in a circuit.

**Power Supplies**

In power supply applications, capacitors help stabilize the output voltage by smoothing out voltage ripples and transient voltage spikes.

**Oscillators**

Capacitors, in combination with inductors and resistors, can create oscillating circuits that generate specific frequencies for applications like signal generation and frequency synthesis.

In summary, capacitors are fundamental passive components in electronic circuits, characterized by their ability to store and release energy in the form of an electric field. They come in various types and are used in a wide range of applications, from filters and power supplies to oscillators and decoupling. Understanding the principles, types, and applications of capacitors is essential for anyone working with electronic circuits and systems. However, there are types of capacitances that we don’t want in our circuits.

**Stray and Parasitic Capacitance**

Parasitic and stray capacitances are unintentional and often undesirable effects that occur in electronic circuits. They can lead to performance issues, inaccuracies in measurements, and signal degradation. Both types of capacitance arise from the physical layout and design of a circuit, including the arrangement and proximity of conductive traces, components, and wiring. In this brief introduction, we will discuss the origins and potential impacts of parasitic and stray capacitances on electronic circuits.

**Stray Capacitance and its Impact on Circuit Performance**

Stray capacitance is an unintended and often undesirable effect that occurs in electronic circuits, causing potential performance issues and inaccuracies in measurements. This phenomenon is primarily caused by the physical layout of a circuit, including the spacing and arrangement of conductive traces, components, and wiring. The stray capacitance between two elements in a circuit can be modeled using the formula for parallel plate capacitance:

$C = \frac{\epsilon A}{d}$where C represents the capacitance, A is the are of the plates, d is the separation distance, and $\epsilon$ is the permittivity of the medium.

**Stray Capacitance in High-Frequency Applications**

Stray capacitance is particularly troublesome in high-frequency applications, such as radio frequency (RF) circuits, because the rapid changes in voltage can exacerbate the effects of stray capacitance. The impedance of a capacitor at a particular frequency is given by the capacitive reactance:

$X_C = \frac{1}{2\pi f C}$where $X_c$ is the capacitive reactance, **f** is the frequency, and **C** is the capacitance. Signal loss, reflections, and crosstalk can occur, reducing the overall performance of the circuit. Designers can mitigate the impact of stray capacitance by using specialized components, such as high-frequency capacitors, which exhibit low parasitic capacitance and low loss. Additionally, arranging components and conductive traces to minimize mutual capacitance and coupling can further reduce the impact of stray capacitance on high-frequency circuits.

**Minimizing Stray Capacitance in Measurements**

Calibration is a crucial process that can help minimize the effect of stray capacitance on measurement accuracy. By using a known reference object, the capacitance meter or network analyzer can account for the presence of stray capacitance and correct the measurements accordingly. This process involves comparing the measured value of the reference object to its known value, calculating the difference, and adjusting the measurement system to account for this discrepancy. Calibration should be performed periodically to maintain the highest level of measurement accuracy and account for any drift in the instrument’s performance over time.

**Guard Traces for Isolation from External Influences**

Guard traces are an effective technique for isolating the object being measured from external conductive objects that may introduce stray capacitance. By surrounding the measurement area with a conductive shield connected to a low-impedance ground, the guard trace can intercept stray electric fields and prevent them from affecting the measurement signal. This technique is especially useful in low-frequency applications, where the shield’s capacitance can be made sufficiently large to effectively isolate the measurement area from external influences.

**Parasitic Capacitance and Techniques to Minimize its Effects**

Parasitic capacitance is an undesired phenomenon in electronic circuits, stemming from unintentional capacitance present in conductive traces, components, and other circuit elements. It arises due to the physical layout and design of a circuit and can cause a range of issues that degrade circuit performance, such as signal distortion, reduced bandwidth, and diminished signal-to-noise ratio. The formula for capacitance provided earlier also applies to parasitic capacitance:

**Utilizing Low-Capacitance Components**

To reduce the impact of parasitic capacitance on circuit performance, designers can use components with low capacitance values. Ceramic capacitors and film capacitors offer lower parasitic capacitance due to their compact size and low-loss dielectric materials. By using these components in high-frequency applications, designers can minimize the impact of parasitic capacitance and reduce signal distortion, bandwidth limitations, and other performance issues associated with this

**Advanced Capacitance Measurement Techniques**

Expanding on the basic techniques for measuring capacitance, these advanced methods can improve accuracy and adapt to modern electronic system requirements:

**Automated Capacitance Measurement Systems**

Automated systems integrate with computer-controlled setups to provide high-precision measurements. These systems are particularly useful in production environments where speed and repeatability are crucial. They can measure a wide range of capacitances quickly and store data for quality control and analysis.

**Nonlinear Capacitance Measurement**

Some capacitors, especially in semiconductor devices, exhibit nonlinear behavior where capacitance changes with the applied voltage. Advanced methods, such as Charge Pumping and Deep Level Transient Spectroscopy (DLTS), can be used to measure these characteristics, which are vital for semiconductor research and quality assurance.

**Thermal and Frequency-Dependent Measurements**

Capacitance can vary with temperature and frequency. Discussing methods to measure capacitance across a spectrum of frequencies and temperatures can be vital for applications in environments with fluctuating conditions. This involves using temperature chambers and frequency response analyzers to provide a comprehensive view of a capacitor's performance in real-world conditions.

**Conclusion**

As we continue to push the boundaries of electronics and materials science, the importance of precise capacitance measurement grows. Modern challenges like miniaturization, higher energy efficiency, and the integration of electronic components into new materials and environments demand ever more accurate and robust measurement techniques. Looking ahead, the evolution of measurement technologies and the expansion into new application areas will further underscore the fundamental role of capacitance in electrical engineering and technology development. By staying informed about advances in measurement methods and understanding the underlying principles and challenges, professionals in the field can better harness these developments for innovative solutions and improved system performance.
