Full Wave Rectifier

Introduction to Full Wave Rectification

Full wave rectification is a crucial process in converting alternating current (AC) to direct current (DC), allowing both halves of the AC cycle to contribute to the output. This method is more efficient than half-wave rectification, as it utilizes the entire input waveform. A bridge rectifier, consisting of four diodes arranged in a specific configuration, is commonly used for full wave rectification.

Objective

The aim of this experiment is to construct a full bridge rectifier using a Red Pitaya to output a ±1V sine wave, and observe the rectification process. Special attention will be paid to the role of load resistors, voltage drops across diodes, and the impact of circuit connections on the rectification outcome.

Materials and Setup

  • Red Pitaya or equivalent device for signal generation
  • Four diodes for the bridge rectifier configuration
  • A 1 kOhm load resistor
  • Oscilloscope with probes

Circuit Assembly

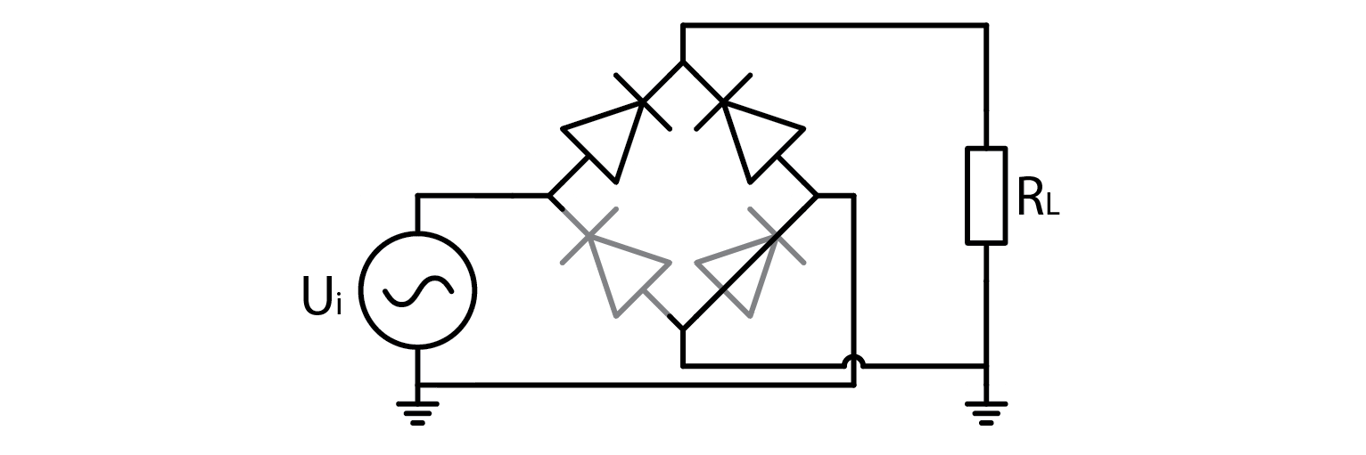

  1. Bridge Rectifier Configuration: Arrange the four diodes in a bridge configuration to create the full wave rectifier. Connect the Red Pitaya to provide a ±1V sine wave as the input signal.
      2. notion image
  1. Load Resistor: Incorporate a 1 kOhm load resistor at the rectifier's output to simulate a load in the circuit.

Conducting the Experiment

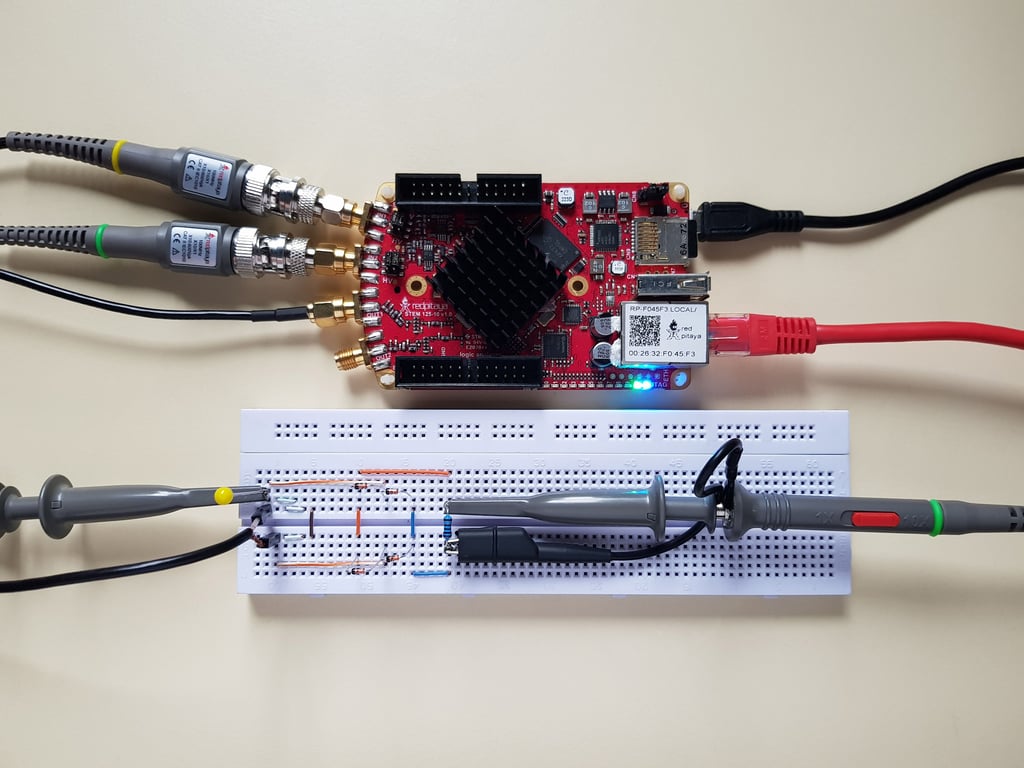

  • Signal Generation and Measurement: Initiate a ±1V sine wave from the Red Pitaya. Connect one oscilloscope probe to the input and another to the rectifier's positive output to measure the rectified signal.
      • notion image

Analysis and Observations

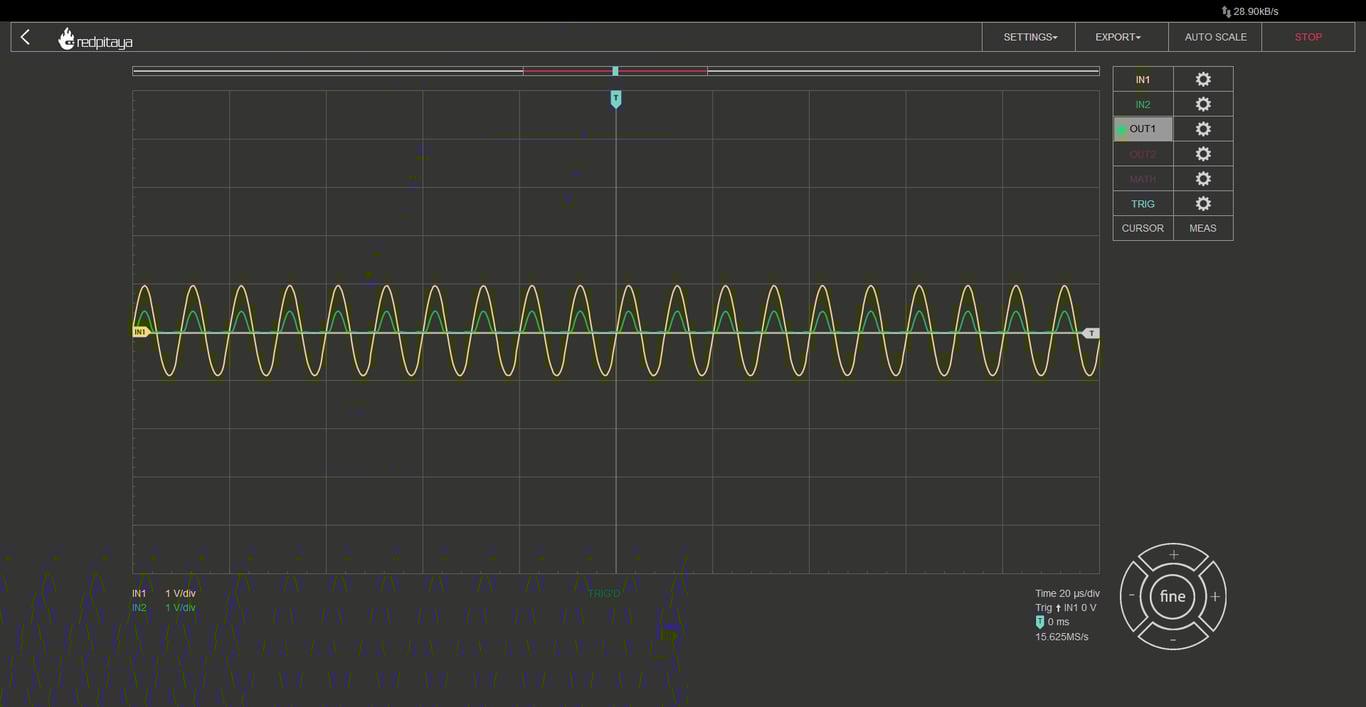

  • Unexpected Waveform and Voltage Drop: The observed waveform resembles that of a half-wave rectifier, with a voltage drop less than the anticipated 0.7V per diode, suggesting the diodes operate below their nominal voltage drop range. This results from the Red Pitaya’s output limitation, which does not reach the cumulative voltage drop expected across two conducting diodes in a full wave configuration.
      • notion image

Troubleshooting Insights

  • Misinterpretation of Circuit Behavior: Initially expecting a full wave rectification, the setup inadvertently mimics a half-wave rectifier due to improper grounding, illustrating the importance of accurate circuit configuration.
  • Voltage Drop Reevaluation: The realization that the Red Pitaya's output is insufficient to overcome the combined forward voltage drop of two diodes in the bridge rectifier leads to a reevaluation of expected outcomes and underscores the nuances of diode operation below nominal conditions.

Relevant Equation

The expected voltage drop in a fully operational full wave rectifier, considering ideal conditions and diode characteristics, is:
Vdrop=2â‹…VdiodeV_{drop}=2 \cdot V_{diode}
where VdiodeV_{diode} is the forward voltage of a single diode, typically around 0.7V for silicon diodes, leading to an expected drop of 1.4V. However, this experiment illustrates operational conditions where the input voltage VinV_{in} is less than the cumulative forward voltage of the conducting diodes, modifying the expected behavior.

Conclusion

This experiment on full wave rectification with a Red Pitaya illuminates several key learning points: the impact of load resistors, the significance of diode forward voltage in circuit operation, and the critical importance of accurate circuit configuration. It also demonstrates the process of troubleshooting and hypothesis testing in practical electronics. Exploring what happens without a grounding clip, or in configurations that deviate from expected setups, serves as an excellent exercise in understanding the dynamics of rectification circuits and the practical challenges they present.
