Digital-to-Analog Converters (DACs) are essential in translating digital signals into analog voltages, facilitating the interface between digital systems and the analog world. The binary weighted DAC stands as a classic design, leveraging the binary nature of digital signals to create analog outputs with resistors arranged in a binary-weighted fashion. This approach provides a straightforward implementation for converting binary digital input into a proportional analog voltage.

**Objective**

The aim of this experiment is to construct a simple 3-bit binary weighted DAC using 10 kOhm resistors, demonstrating the principles of binary weighting in DAC design. By using a reference voltage of 1V and switches for bit setting, we explore the operational characteristics and advantages of the binary weighted DAC, particularly in terms of component efficiency and operational frequency.

**Materials and Setup**

- 10 kOhm resistors for the DAC ladder
- Operational Amplifier (OpAmp) powered by ±3V
- Switches for setting the DAC bits
- Red Pitaya or equivalent for generating the 1V reference voltage

**Circuit Assembly**

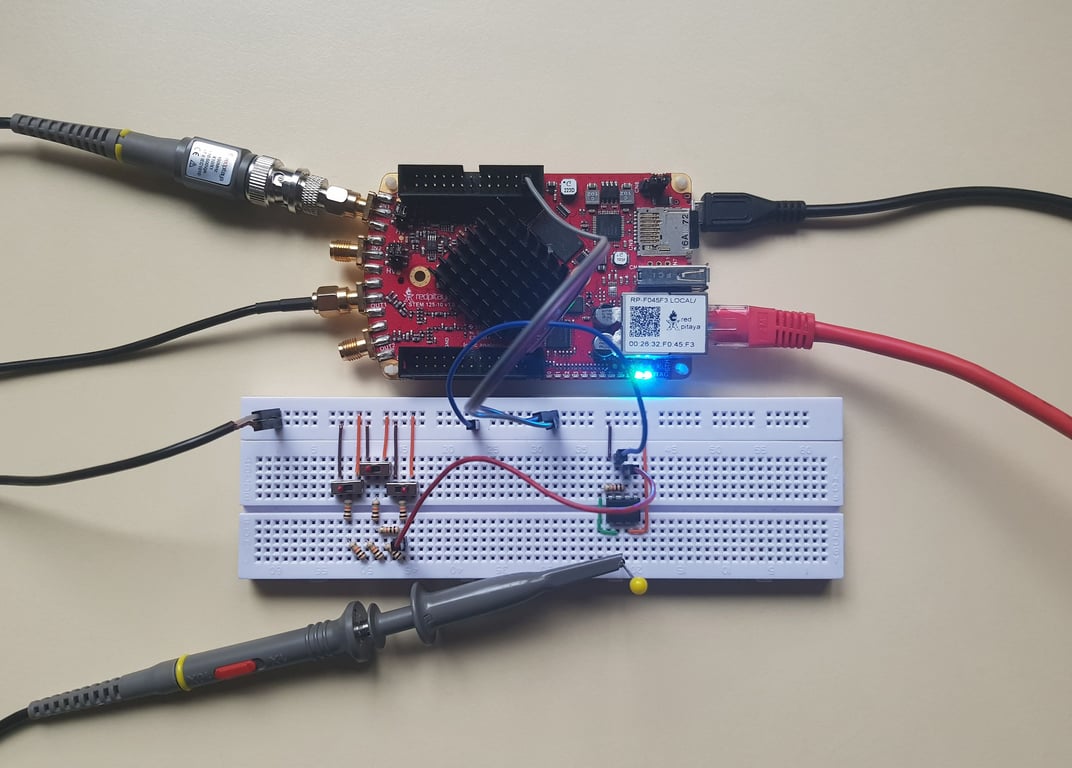

**Binary Weighted DAC Configuration:**Assemble the 3-bit binary weighted DAC according to the schematic, utilizing 10 kOhm resistors and switches to represent binary digits. Ensure the OpAmp is supplied with ±3V to power the circuit.**Circuit Construction:**Carefully construct the DAC on a breadboard or similar prototyping platform, following the design to accurately reflect the binary weighting of resistors.

**Conducting the Experiment**

**Setting DAC Bits:**Utilize the switches to set different binary values, observing the corresponding analog output voltage as a result of the DAC conversion.

**Analysis and Observations**

**Operational Characteristics:**The binary weighted DAC efficiently converts the set binary input into a proportional analog output, with the number of resistors directly corresponding to the DAC's bit depth and the number of switches significantly reduced compared to other designs, leading to lower parasitic capacitance.**Advantages:**This design showcases a higher maximum operational frequency due to the reduced number of switches, demonstrating the binary weighted DAC's suitability for applications requiring faster signal conversion with minimal component count.

**Conclusion**

The construction and analysis of a 3-bit binary weighted DAC illuminate the fundamental principles and advantages of this design, including efficiency in component use and enhanced operational frequency. By employing a systematic arrangement of resistors and utilizing switches for binary input, the binary weighted DAC exemplifies an effective method for converting digital signals to analog voltages, suitable for a wide range of applications. This experiment underscores the importance of understanding various DAC designs for electronics engineering and digital signal processing, offering insights into optimizing circuit design for specific performance criteria.
